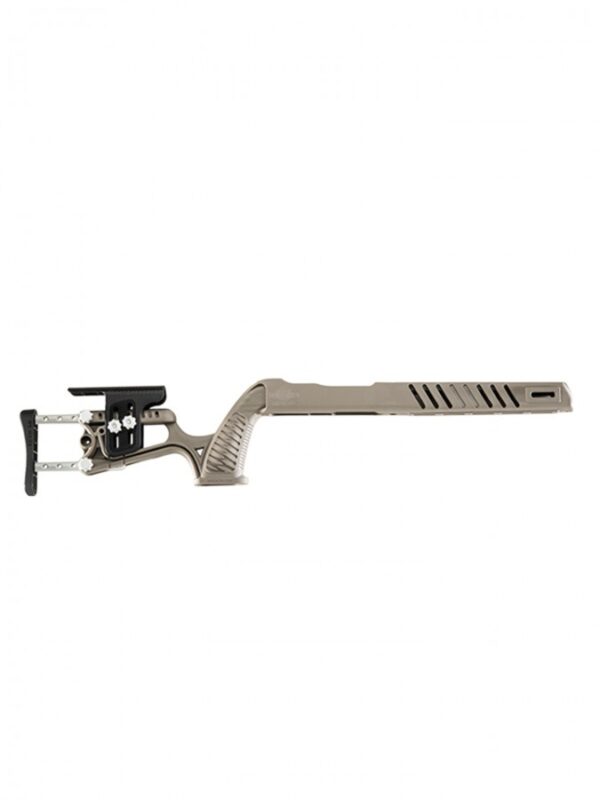

Luth-AR 10/22 Modular Chassis Assembly FDE – MCA-22

MCA™-22

Designed for Ruger® 10/22® and similar actions and barrels.

The MCA™-22 allows users the best possible fit for recreational, hunting, and competition shooting. Easily install your Ruger® 10/22® or similar receiver, trigger group and barrel into the MCA™-22. Accepts standard or bull barrels.

The MCA-22 is compatible with the Ruger 10/22 style receiver as long as it is NOT the takedown model. The MCA-22 is NOT compatible with bolt action .22s. Does not fit receivers with a rear tang.

• Easy to install, light weight chassis and cost effective.
• Constructed with high-strength glass filled nylon, 6061 aluminum and steel.
• Designed for comfort and ergonomic control for wide range of body types.
• 100% ambidextrous.
• Ambidextrous goose-neck style pistol grip with palm swell.
• Click-adjustable cheek piece.
• Aggressive grip panel and front grip strap texturing.

* Note: Chassis only, user must provide action and barrel.

Butt Stock features:

• Ambidextrous goose-neck style pistol grip with palm swell.
• Click-adjustable cheek piece / front and back .750” / up and down 2” (+1”/-1” from bore center).
• Aggressive grip panel and front grip strap texturing.
• Length of pull adjustable from 11.25” to 15.75” in .75” increments.
• 1” Vertical butt pad adjustment.
• Two locations to accept GrovTec Threaded QD Cup inserts.

Foregrip features:

•  5-slot M-LOK® compatible foregrip bottom with 1 M-LOK® slot on both sides of foregrip.
•  Front bottom foregrip pre-drilled dome sling stud locator hole (Must Tap 10-32).
•  Removable taper barrel foregrip insert to accommodate bull barrels.

Specifications:

• Weight: 2.09 lbs
• Overall Length: 26.5″
  • Collapsed: 27″
  • Full Extension: 30.75″
• Width: 1.790″
• Additional LOP
  • Collapsed: 11.25″
  • Extended: 15.75″
  • Increments: .75″
• Cheek Rise
  • Increments: .090″
  • Adjustable: 2” (+1”/-1” from bore center)
• Available in Black and Flat Dark Earth

SKU – FDE: MCA-22
